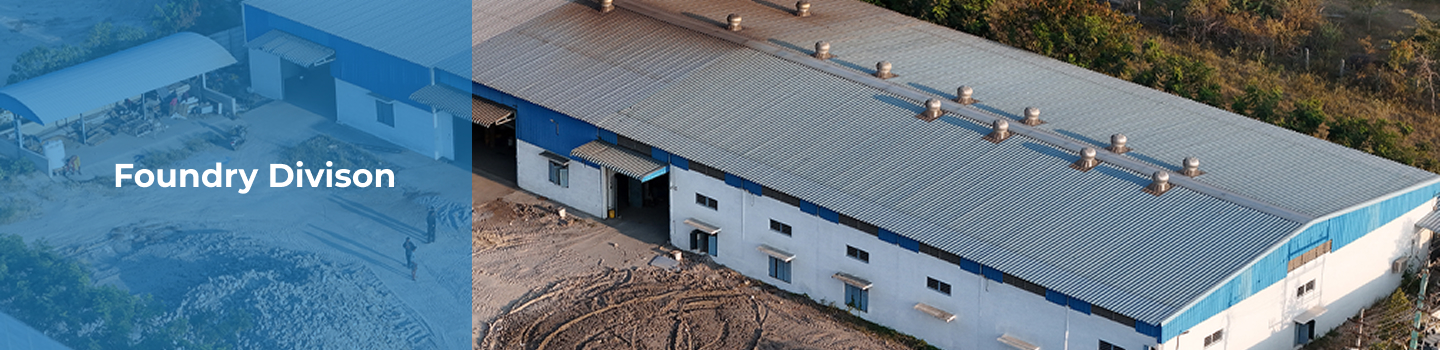

Foundry Divison

SMS Alloys we manufacture and supply Carbon Steel, Alloy Steel, Stainless Steel, Duplex Stainless steel and Nickel-base alloy castings in machined and unmachined conditions.

SMS ALLOYS
Built Up area	20,000 Sq.ft
Installed Capacity	300 Tonnes/ Annum
Installed Weight Limit range	Maximum 300 Kgs a single piece casting
Captive power (for 100% power Backup)	150 Kva Diesel Generator

Manufacturing Facilities

Casting Development

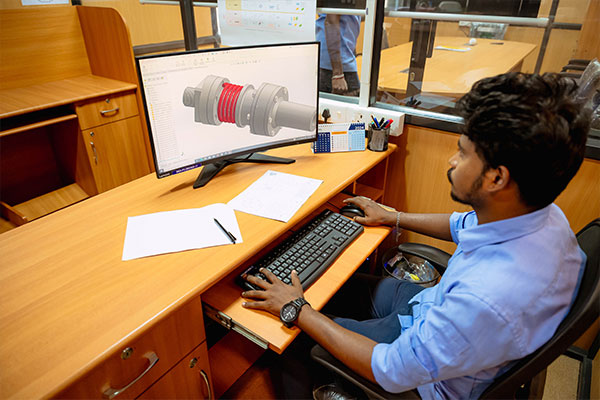

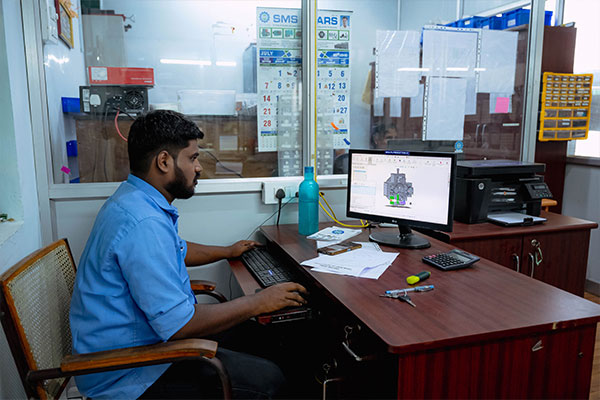

Our Engineer at SMS Gears use advanced software like Solidworks for 3D Modelling and analysis. We follow best practices and control the process variables to eliminate potential defects prior to production to achieve short production times and reduced manufacturing costs

Software Available

Design	Simulation	Pattern Stored	Pattern Storage area
Solidworks, Autocad	Solidworks, Casting simulation (Outsourced)	100+ Nos	2000 Sq.ft

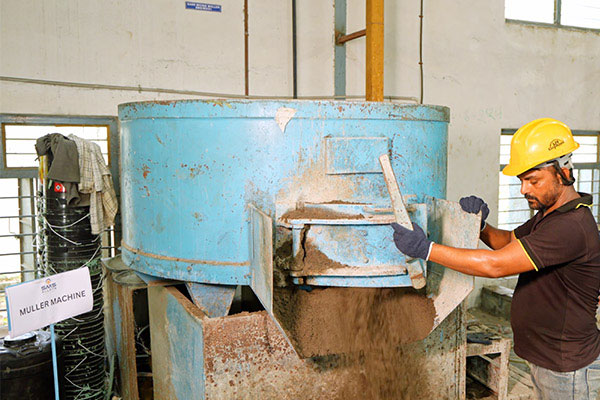

Moulding

We have a dedicated team and complete facilities for hand moulding for Sodium Silicate Co2 process and Alpha Set Process for moulding and chemically bonded sand processes for core making.

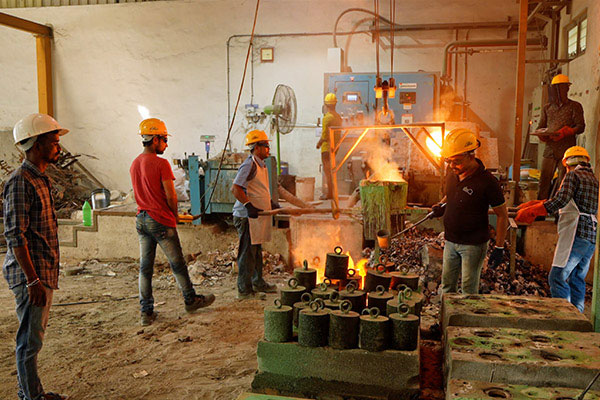

Melting Foundry

Induction furnaces 150kgs, 300Kgs crucibles

Centrifugal Furnace: We can produce horizontal centrifugal castings with O.D. up to 300mm, length up to 100 mm, and weight up to 250 kgs.

We have extensive manufacturing and testing facilities to produce 286 MT per annum and of one-off castings or high repetition castings (in multiples of 100s) with optimal lead times. The melting process is carried out in a medium frequency induction melting furnace.

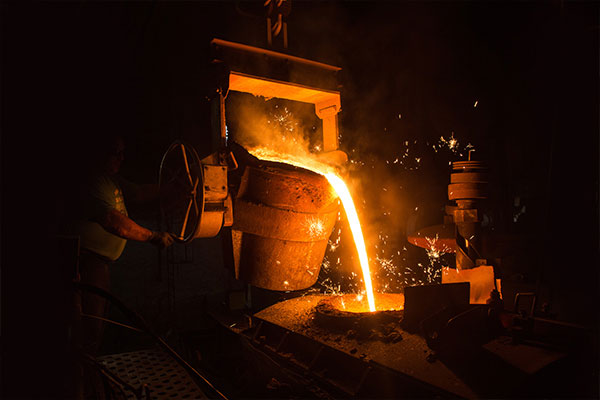

Melting

Our furnaces are capable of heat treating carbon steel, low alloy steel, martensitic steel, austenitic stainless steel, precipitation stainless steel, duplex stainless steel, and nickel- based alloy castings.

Medium Frequency Induction Furnace

SMS Alloys
150 KG, 200 KG & 350 KG.

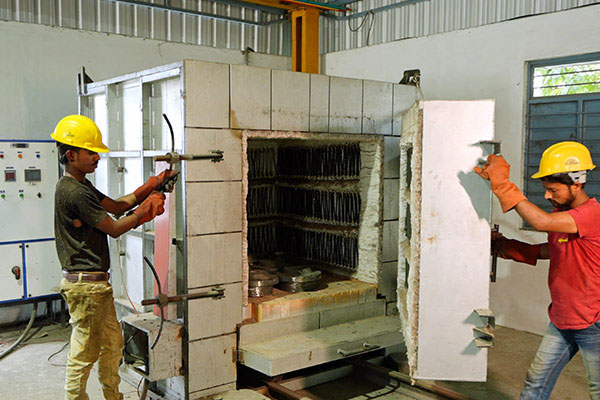

Heat Treatment

Medium Frequency Induction Furnace

SMS ALLOYS
Electric Furnace	0.1T, 0.3T
Gas Fired Furnace	5T
Water Auto Quenching facility	Upto 100 Kilo litres

Knockout

The Knock out process involves the separation of castings from sand molds, sand from mould boxes and cores from castings. Operators are well-trained in the implementation of the process.

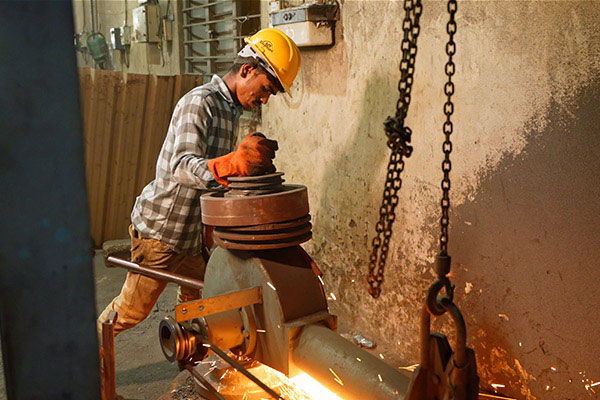

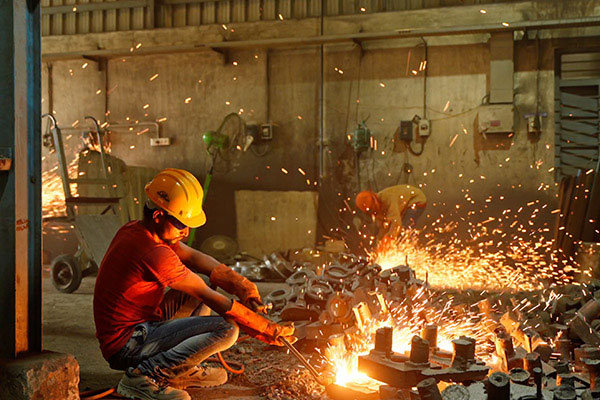

Fettling Shop

The fettling shop consists of hand grinders and heavy swing frame grinders along with Shot Blasting, Acid Pickling and Passivation facilities.

Standards, Material Grades & Specifications

We manufacture a wide range of industrial valve & pump steel castings confirming to International standards like ASTM / ASME, EN/DIN & NACE.

Specifications

Carbon Steel	Carbon Steel ASTM A 216 Gr. WCB, WCC
Carbon Steel for Low Temperature Service	ASTM A 352 Gr. LCB, LCC, LC2, LC3
Alloy Steel	ASTM A 217 Gr. WC5, WC6, WC9, C5, C12, C12A
Martenstic Stainless Steel	ASTM A 217 Gr. CA15
	ASTM A 352 Gr. CA6NM
Stainless Steel	ASTM A 351Gr. CF3, CF3M, CF8, CF8M, CF8C
Duplex Stainless Steel	ASTM A890 / A995 Gr.-1A, 1B, 2A, 3A, 4A, 5A, 6A
Precipitation Stainless Steel	ASTM A 747 Gr. CB7Cu - 1
Nickel based alloy steel	ASTM A 494, M35-1, N12MV, CU5MCuC, CW2M

Standards, Material Grades & Specifications

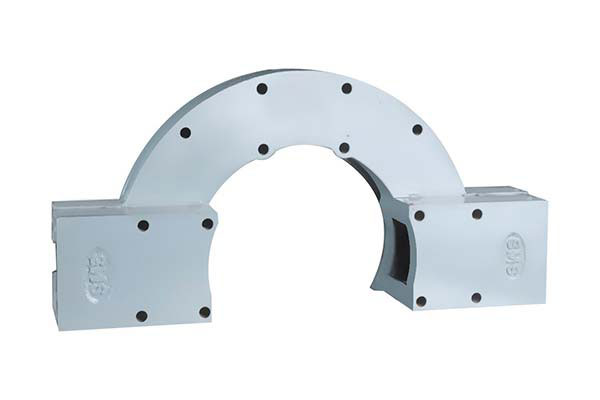

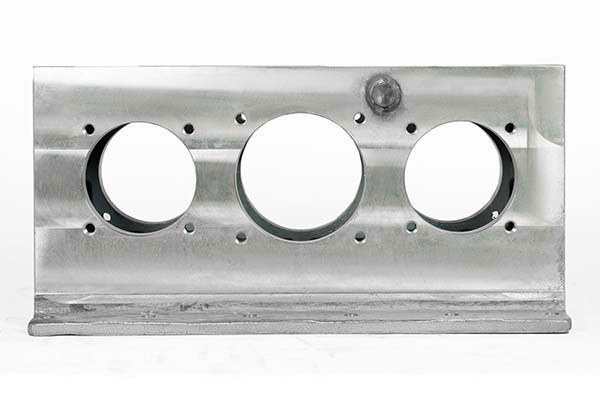

Gate Valves
Butterfly Valves (Body & Disc)
Low pressure Gate Valves (Body, Bonnet and Wedge)

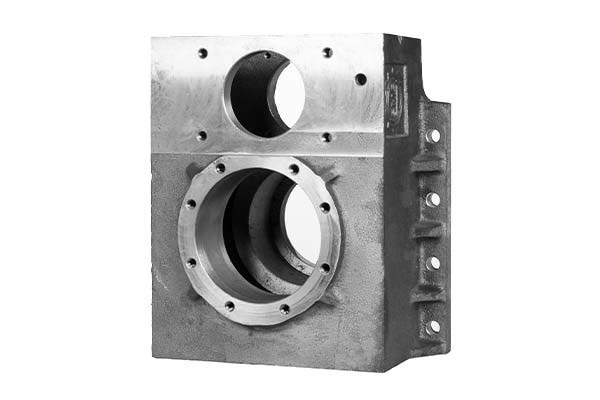

Gearbox Housing
High pressure Gate valves (Body, Bonnet and Wedge)
Pulleys
Knife Edge Gate Valve (Body)
Spanner
Control Valves (Body, Bonnet, Yoke, Plug & Cages)
Catcher bracket
Swing Check Valves (Body, Cover and Disc)
Hydraulic Cylinder head

Foundry Quality

PHYSICAL TESTING

Physical Testing unit comprises of the following equipment calibrated under third party TUV, BVQI, DNV-GL, Lloyds & IBR.

Screen - Fine ground glass screen 300 mm x 5 mm with cross lines at 900 Magnification - 10 x Lens
Workstage - Size of Top Plate - 350 x170 mm
Measuring Traverse XIY axis - 200 x 100 mm
Working Area - 245 x 120 mm
Load Capacity - 20 Kgs
Max -150 mm
Brinell hardness testing machine with 0-600 BHN range.

IMPACT TESTING

Impact Testing Machine with capacity of 0 - 300 Joules Charpy, we can perform to low temperature - 196 degree Celsius
ASTM E23
ASTM E23
Testing temperature up to - 196 C
Lateral Expansion

HARDNESS TESTER

Brinell Hardness Tester
Rockwell Hardness tester
(Load: 100 Kgf & 150 Kgf - 1No, 10 kg load-1No)
Vickers Hardness Tester
Bend Test

METALLOGRAPHIC EXAMINATION

Computerized microscope to analyze and verify the micro structure of steel castings produced as per ASTM E562 Standard
