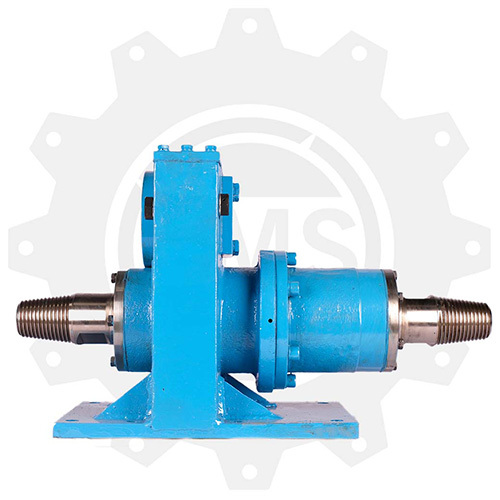

SMS FT2 - Crawler Multi Angle Rotary Head Gearbox

Get a Price/Quote

SMS FT2 - Crawler Multi Angle Rotary Head Gearbox Specification

Gearbox Ratio
3:1

Center Bearing
Heavy Duty Tapper Roller

Max Pull Up
2500 kgf

Flushing Medium
Air/Water @5000 PSI

Oil Type
ISO VG-220

Max Mining Depth
20 m

Application
Mining Crawler Rig

Max Output RPM
100 RPM

Max Pull Down
1500 kgf

Spindle Diameter
80 mm

Drilling Method
DTH/Rotary

Hydraulic Motor
OMS Series Motor

Attachment
Water swivel @5000 PSI

Flushing Hole Dia
20-25 mm

Weight (w/o motor)
125 kg

About SMS FT2 - Crawler Multi Angle Rotary Head Gearbox

SMS FT2- Crawler Multi Angle Rotary Head Gearbox

SMS FT2- Crawler Multi Angle Rotary Head Gearbox. When mining exploration demands more than just vertical holes, the SMS FT2- Crawler Multi Angle Rotary Head Gearbox delivers. Engineered for crawler drill rigs, this gearbox is the industry solution for complex mining applications that require precision at every degree. The SMS FT2 Advantage is 90° to 180° Flexibility The standout feature of the SMS FT2 is its multi-angle capability. Designed specifically for the challenging terrain and diverse drilling needs of modern mines, this unit allows for Horizontal and Vertical Precision. Seamlessly transition to drill at 90-degree and 180-degree angles. FT2 is Compact and rugged design, perfectly balanced for the weight distribution requirements of crawler-mounted rigs.

Product details

Application	Mining- Crawler Rig
Drilling Method	DTH/ Rotary
Max Hp	220 Hp
Mining Depth	102 - 140 mm (4 1/2"- 5 1/2")- 20 m (66 feet)
Spindle Diameter	80 mm
Hydraulic Motor	OMS Series Motor
Gearbox Housing	MS Annealed, Graded CI (In House)
Center Bearing	Full Casted 4 Bearing Double Bearing Housing Driveline- Heavy Duty Tapper Roller (Timken/ Koyo/ FAG)
Attachment	Water swivel system @5000 PSI
Warranty	1 Year Warranty, 10 year Spare part backup

Technical Specification

Gearbox Ratio	3:1 (Grounded Gears)- Smooth Drive
Max Output RPM	0- 100 Rpm (Varies on Hydraulic Motor selection)
Max Output Torque	upto 800 Nm (Varies on Hydraulic Motor Selection)
Flushing Hole Diameter	20- 25mm
Flushing Medium & Pressure Rating	Air or water @ 5000 PSI
Max pull up force withstanding capacity	2500 kgf
Max pull down force withstanding capacity	1500 kgf
Gearbox Weight	125 Kg's without motor
Gearbox Oil	ISO VG-220
