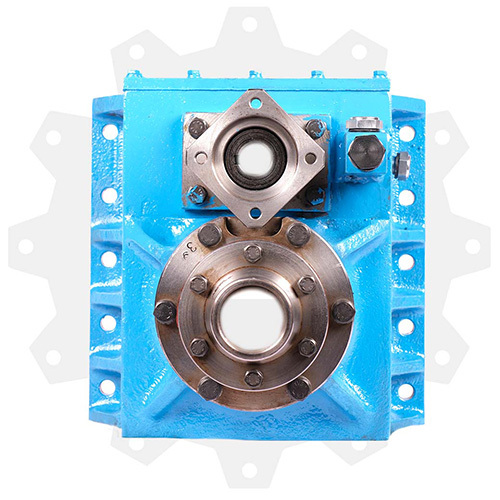

SMS R5 Mini - Multipurpose Rotary Head

Name: SMS R5 Mini - Multipurpose Rotary Head
Brand: SMS Gears

Get a Price/Quote

MOQ : 1 Piece

SMS R5 Mini - Multipurpose Rotary Head Specification

Flushing Pressure
Air/water @ 5000 PSI

Flushing Hole Diameter
20ÃÃ¢ÃÃÃÃ25 mm

Gearbox Weight
130 kg

Max Pull Down
2000 kgf

Max Pull Up
3000 kgf

Max Output RPM
100 RPM

Center Bearing
Full Casted, 4 Bearings

Mining Depth
Up to 20 m (single pass)

Motor Type
OMS Series Hydraulic

Application
Tractor & Crawler Drilling

Attachment
Water Swivel System

Spindle Diameter
90 mm

Water Well Depth
Up to 150 m

Gearbox Oil
ISO VG-220

SMS R5 Mini - Multipurpose Rotary Head Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About SMS R5 Mini - Multipurpose Rotary Head

SMS R5 Mini- Multipurpose Rotary Head

The SMS R5 Mini is engineered for drillers who refuse to sacrifice torque for portability. Weighing in at a lean 130 kg, this rotary head is the ultimate solution for multipurpose drilling rigs where space and weight distribution are critical, but performance is non-negotiable. We ve integrated a sophisticated 4-bearing main spindle arrangement to distribute axial and radial loads evenly. This design significantly extends the service life of the internal components, even when pushing the limits in hard rock formations. Spindle Diameter 90mm for maximum torsional rigidity. Flushing Hole of 25mm bore, optimized for high-pressure air circulation to ensure rapid cuttings removal.

Water Well Drilling: Perfect for both Tractor-mounted and Crawler-mounted rigs operating in tight residential or rural spaces.
Mining Operations: Rugged enough for Crawler-mounted blast hole or exploration drilling.
Multipurpose Utility: Easily adaptable for specialized geotechnical or construction piling projects.

Product details

Application	Water well- Crawler or Tractor Mount Mining- Crawler or Tractor Mount
Drilling Method	DTH
Max Hp	Direct 250 Hp Engine
Water well Depth	102 - 140 mm (4 1/2"- 5 1/2")- 150 m (650 feet)
Mining Depth	102 - 140 mm (4 1/2"- 5 1/2")- 20 m (66 feet) SIngle Pass
Spindle Diameter	90mm
Hydraulic Motor	OMS Series Motor
Gearbox Housing	MS Annealed, Graded CI (In House)
Center Bearing	Full Casted 4 Bearing Double Bearing Housing Driveline- Heavy Duty Tapper Roller (Timken/ Koyo/ FAG)
Attachment	Water swivel system @5000 PSI
Warranty	1 Year Warranty, 10 year Spare part backup

Technical Specification

Gearbox Ratio	3:1 (Grounded Gears)- Smooth Drive
Max Output RPM	0- 100 Rpm (Varies on Hydraulic Motor selection)
Max Output Torque	upto 800 Nm (Varies on Hydraulic Motor Selection)
Flushing Hole Diameter	20- 25mm
Flushing Medium & Pressure Rating	Air or water @ 5000 PSI
Max pull up force withstanding capacity	3000 kgf
Max pull down force withstanding capacity	2000 kgf
Gearbox Weight	130 Kg's without motor
Gearbox Oil	ISO VG-220
